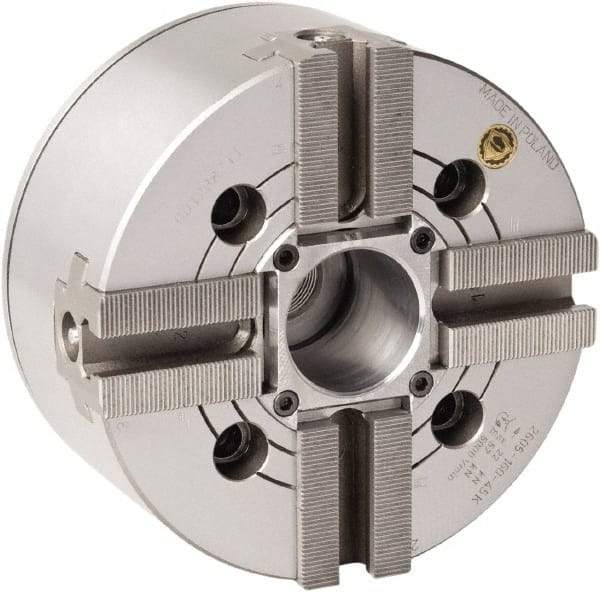

Bison - 4 Jaw, 5.31" Chuck Diam, Plain Back Mount, 34mm Through Hole Diam, Drawtube Hydraulic Power Lathe Chuck - 1.5mm x 60° Serrated Jaw Interface, 0.3149 to 5.3149" Jaw Capacity, 6,000 RPM, High Speed Steel Body
Item #: 30521801
Brand: Bison
Model #: 7-783-0500
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (mm) | 135.00 |
| Chuck Diameter (Inch) | 5.3100 |
| Chuck Diameter (Decimal Inch) | 5.3100 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 34.00 |
| Through-Hole Diameter (Decimal Inch) | 1.3300 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 0.3149 |
| Maximum Jaw Capacity (Decimal Inch) | 5.3149 |
| Jaw Stroke Diameter (mm) | 5.40 |
| Jaw Stroke Diameter (Decimal Inch) | 0.2120 |
| Piston Stroke Length (mm) | 10.00 |
| Maximum Drawbar Pulling Force (kN) | 17.50 |
| Maximum Drawbar Pulling Force (Lb.) | 3934.00 |
| Maximum Static Gripping Force (kN) | 36.00 |
| Maximum Static Gripping Force (lbf) | 8093.00 |
| Moment of Inertia (lb/sq ft) | 0.33 |
| Maximum RPM | 6000 |
| Body Material | High Speed Steel |
