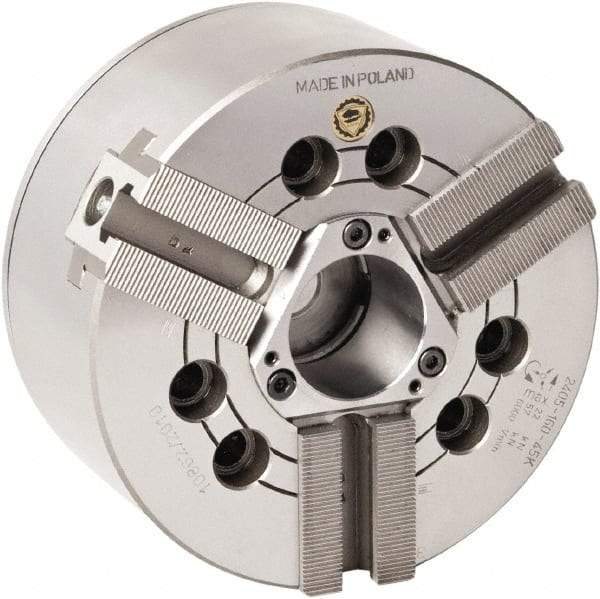

Bison - 3 Jaw, 15.75" Chuck Diam, Plain Back Mount, 120mm Through Hole Diam, Drawtube Hydraulic Power Lathe Chuck - 1.5mm x 60° Serrated Jaw Interface, 1.9291 to 14.7637" Jaw Capacity, 2,500 RPM, High Speed Steel Body
Item #: 30521868
Brand: Bison
Model #: 7-781-1600
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (mm) | 400.00 |
| Chuck Diameter (Inch) | 15-3/4 |
| Chuck Diameter (Decimal Inch) | 15.7500 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 120.00 |
| Through-Hole Diameter (Decimal Inch) | 4.7200 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 1.9291 |
| Maximum Jaw Capacity (Decimal Inch) | 14.7637 |
| Jaw Stroke Diameter (mm) | 15.70 |
| Jaw Stroke Diameter (Decimal Inch) | 0.6180 |
| Maximum Drawbar Pulling Force (kN) | 71.00 |
| Maximum Drawbar Pulling Force (Lb.) | 15961.00 |
| Maximum Static Gripping Force (kN) | 180.00 |
| Maximum Static Gripping Force (lbf) | 40465.00 |
| Moment of Inertia (lb/sq ft) | 51.02 |
| Maximum RPM | 2500 |
| Body Material | High Speed Steel |
