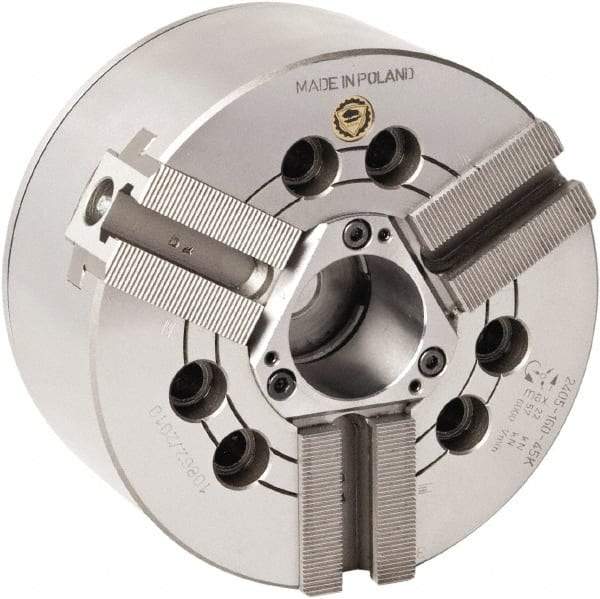

Bison - 3 Jaw, 12.4" Chuck Diam, Plain Back Mount, 91mm Through Hole Diam, Drawtube Hydraulic Power Lathe Chuck - 1.5mm x 60° Serrated Jaw Interface, 1.5748 to 11.9291" Jaw Capacity, 3,300 RPM, High Speed Steel Body
Item #: 30521876
Brand: Bison
Model #: 7-781-1200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (mm) | 315.00 |
| Chuck Diameter (Inch) | 12.4000 |
| Chuck Diameter (Decimal Inch) | 12.4000 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 91.00 |
| Through-Hole Diameter (Decimal Inch) | 3.5800 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 1.5748 |
| Maximum Jaw Capacity (Decimal Inch) | 11.9291 |
| Jaw Stroke Diameter (mm) | 12.00 |
| Jaw Stroke Diameter (Decimal Inch) | 0.4720 |
| Maximum Drawbar Pulling Force (kN) | 56.00 |
| Maximum Drawbar Pulling Force (Lb.) | 12589.00 |
| Maximum Static Gripping Force (kN) | 144.00 |
| Maximum Static Gripping Force (lbf) | 32372.00 |
| Moment of Inertia (lb/sq ft) | 17.32 |
| Maximum RPM | 3300 |
| Body Material | High Speed Steel |
