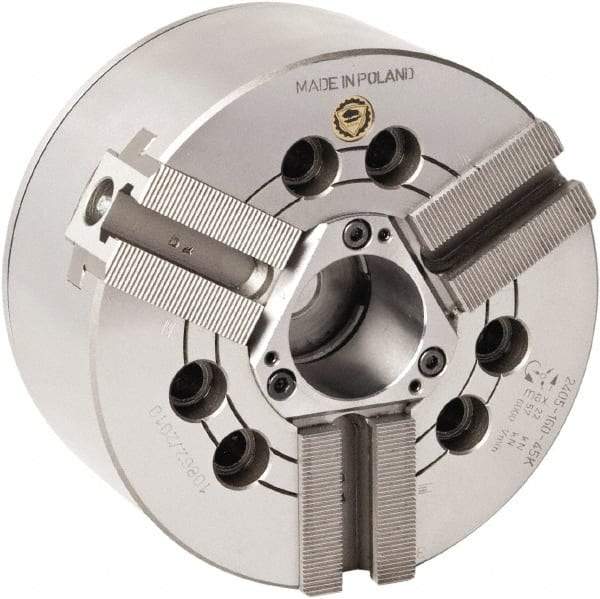

Bison - 3 Jaw, 6.65" Chuck Diam, Plain Back Mount, 45mm Through Hole Diam, Drawtube Hydraulic Power Lathe Chuck - 1.5mm x 60° Serrated Jaw Interface, 0.5905 to 6.7716" Jaw Capacity, 6,000 RPM, High Speed Steel Body
Item #: 30521900
Brand: Bison
Model #: 7-781-0600
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (mm) | 169.00 |
| Chuck Diameter (Inch) | 6.6500 |
| Chuck Diameter (Decimal Inch) | 6.6500 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 45.00 |
| Through-Hole Diameter (Decimal Inch) | 1.7700 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 0.5905 |
| Maximum Jaw Capacity (Decimal Inch) | 6.7716 |
| Jaw Stroke Diameter (mm) | 7.00 |
| Jaw Stroke Diameter (Decimal Inch) | 0.2750 |
| Piston Stroke Length (mm) | 16.00 |
| Maximum Drawbar Pulling Force (kN) | 22.00 |
| Maximum Drawbar Pulling Force (Lb.) | 4945.00 |
| Maximum Static Gripping Force (kN) | 57.00 |
| Maximum Static Gripping Force (lbf) | 12814.00 |
| Moment of Inertia (lb/sq ft) | 1.35 |
| Maximum RPM | 6000 |
| Body Material | High Speed Steel |
