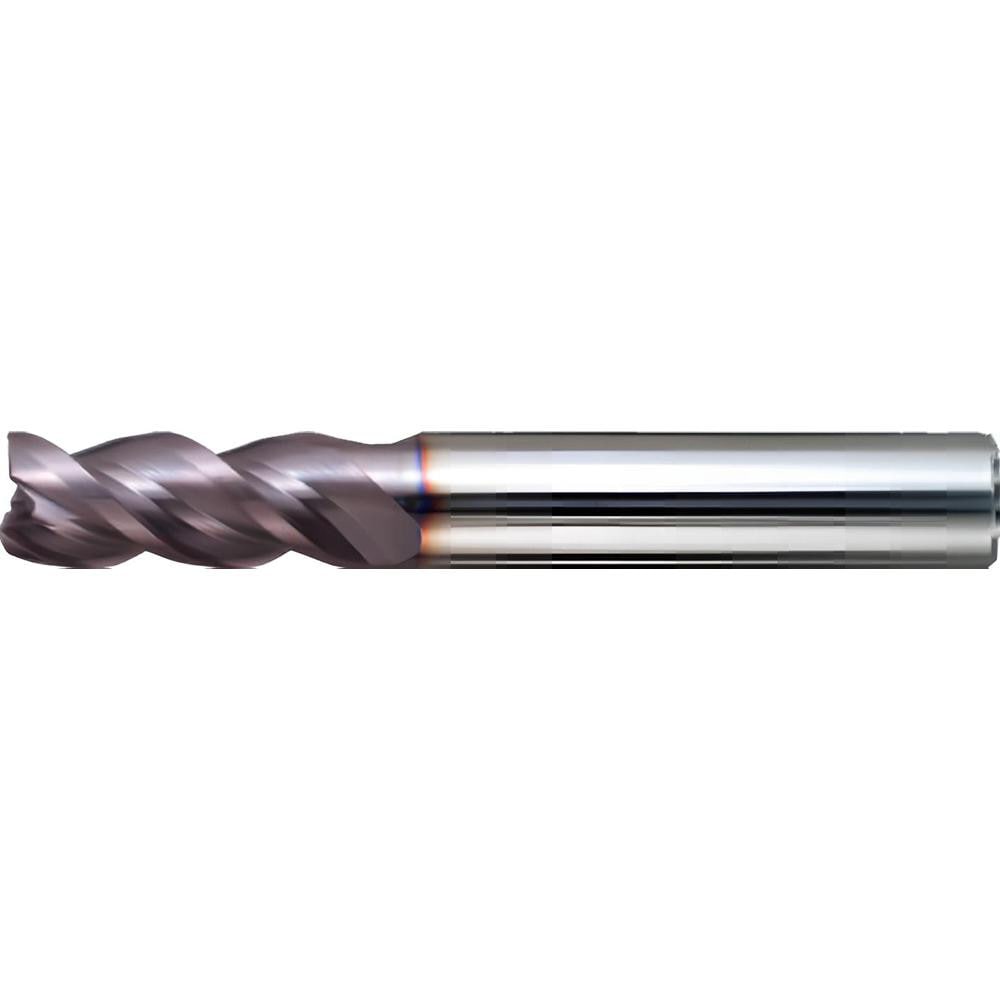

Square End Mill: 14.00 mm Dia, 26.00 mm LOC, 3 Flute, Solid Carbide
Item #: 85402220
Brand: Mitsubishi
Model #: 331993
Product Specifications
| Mill Diameter (mm) | 14.00 |
| Mill Diameter (Decimal Inch) | 0.5512 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.0236 |
| Length of Cut (mm) | 26.00 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 45 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Hardened Materials |
| Secondary Workpiece Material Code | S; H; M; N |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Carbide |
| Length Type | Medium |
| Neck Length (Decimal Inch) | 1.0236 |
| Neck Length (mm) | 26.00 |
| Mill Diameter Tolerance | 0; -0.008 |
| Shank Diameter Tolerance | h6 |
| Series | M-Star Endmill MSMHZD |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
