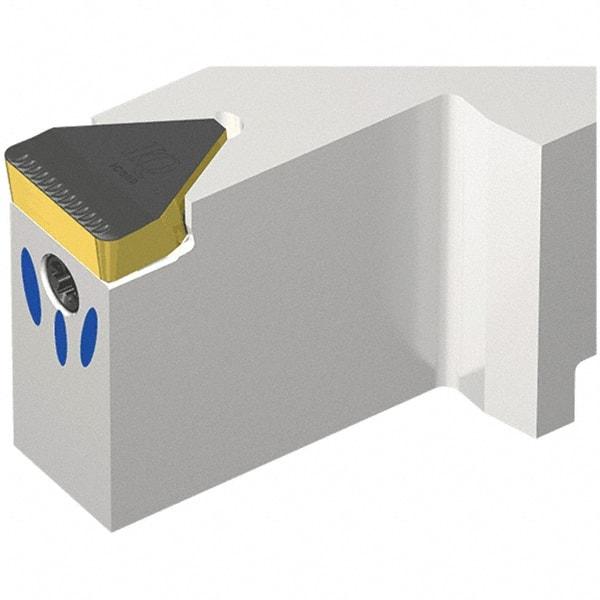

Iscar - THD, External, Right Hand, 40mm Max Depth of Cut, 16mm Max Groove Width, Indexable Grooving Tool Holder - TIGER 1615Y-IQ Insert Compatibility, 32mm Shank Height, 32mm Shank Width, 170mm OAL, Through Coolant
Item #: 30706345
Brand: Iscar
Model #: 2801983
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Groove Width (mm) | 16.00 |
| Maximum Groove Width (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Toolholder Style | THD |
| Insert Compatibility | TIGER 1615Y-IQ |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Series | DoveIQGrip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Head Height (Decimal Inch) | 1.5748 |
| Head Height (mm) | 40.00 |
| Head Length (mm) | 48.00 |
| Head Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 122.00 |
| Shank Length (Decimal Inch) | 4.8031 |
| Complete Insert Compatibility | TIGER 1615Y-IQ |
