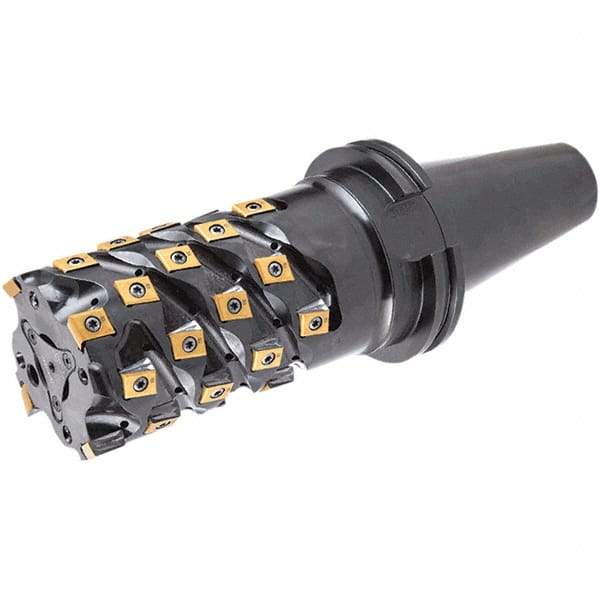

Iscar - 24 Inserts, 80mm Cut Diam, 32mm Arbor Diam, 70mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 95mm High, T490 LN.. Insert Compatibility, Through Coolant, Series Helitang
Item #: 30708473
Brand: Iscar
Model #: 3106582
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 0 |
| Overall Height (mm) | 95.00 |
| Overall Height (Decimal Inch) | 3.7402 |
| Insert Compatibility | T490 LN.. |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 70.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.7559 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| Cutter Style | T490 SM-13FT |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 74.00 |
| Hub Diameter (Decimal Inch) | 2.9134 |
| Complete Insert Compatibility | T490 LNAR 1306PN-R; T490 LNAR 1306PN-R-P; T490 LNHT 1306PN-R PL; T490 LNHT 1306PNTL; T490 LNHT 1306PNTR; T490 LNMT 1306PNTR; T490 LNMT 1306PNTR-CS |
