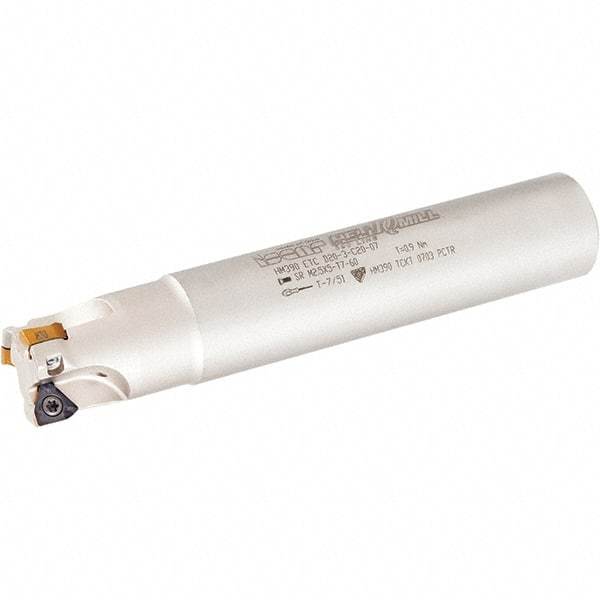

Iscar - 32mm Cut Diam, 5mm Max Depth of Cut, 32mm Shank Diam, 110mm OAL, Indexable Square Shoulder Helical End Mill - HM390 TCKT 0703PCTR Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series HeliIQMill
Item #: 30708507
Brand: Iscar
Model #: 3106708
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 110.00 |
| Overall Length/Projection (Decimal Inch) | 4.3307 |
| Lead Angle | 0 |
| Series | HeliIQMill |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETC-07 |
| Head Length (mm) | 45.00 |
| Head Length (Decimal Inch) | 1.7717 |
| Weldon Flat | Yes |
| Insert Compatibility | HM390 TCKT 0703PCTR |
| Shank Length (Decimal Inch) | 2.5591 |
| Shank Length (mm) | 65.00 |
