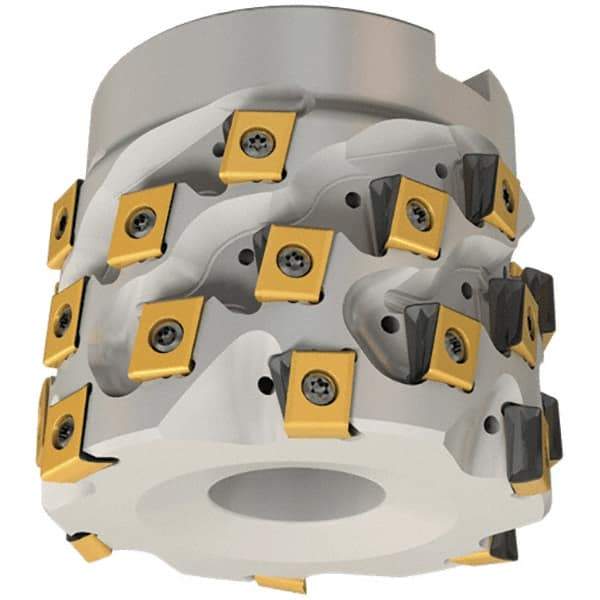

Iscar - 16 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 47mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 68mm High, T490 LN.. Insert Compatibility, Through Coolant, Series Helitang
Item #: 30708812
Brand: Iscar
Model #: 3106864
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0 |
| Overall Height (mm) | 68.00 |
| Overall Height (Decimal Inch) | 2.6772 |
| Insert Compatibility | T490 LN.. |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 47.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.8504 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Cutter Style | T490 SM-13 |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 48.00 |
| Hub Diameter (Decimal Inch) | 1.8898 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Counterbore Diameter (Decimal Inch) | 0.7087 |
| Complete Insert Compatibility | T490 LNAR 1306PN-R; T490 LNAR 1306PN-R-P; T490 LNHT 1306PN-R PL; T490 LNHT 1306PNTL; T490 LNHT 1306PNTR; T490 LNMT 1306PNTR; T490 LNMT 1306PNTR-CS |
