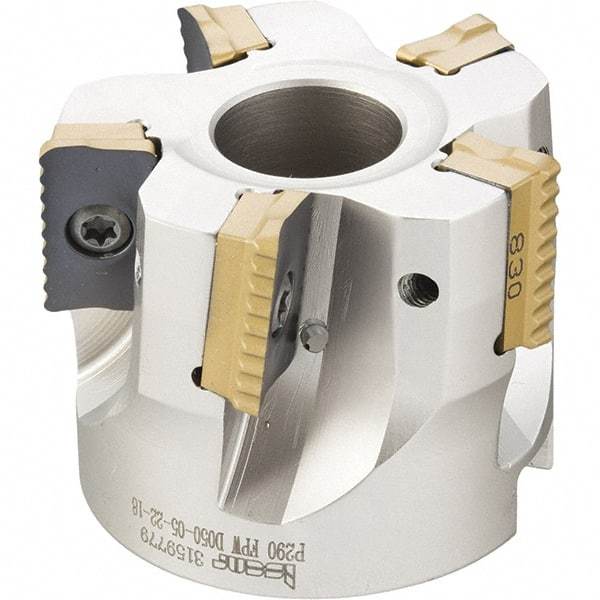

Iscar - 6 Inserts, 2-1/2" Cut Diam, 1" Arbor Diam, 0.708" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 1.57" High, P290 AC.T 1806.. Insert Compatibility, Through Coolant, Series MillShred
Item #: 30709091
Brand: Iscar
Model #: 3110787
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | P290 AC.T 1806.. |
| Series | MillShred |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.7080 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | P290 FPW |
| Hub Diameter (Decimal Inch) | 2.1700 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Counterbore Diameter (Decimal Inch) | 0.7800 |
| Complete Insert Compatibility | P290 ACCT 1806PDR-HL; P290 ACKT 1806PDR-FW; P290 ACKT 1806PDR-FWE; P290 ACKT 1806PDR-FWR |
