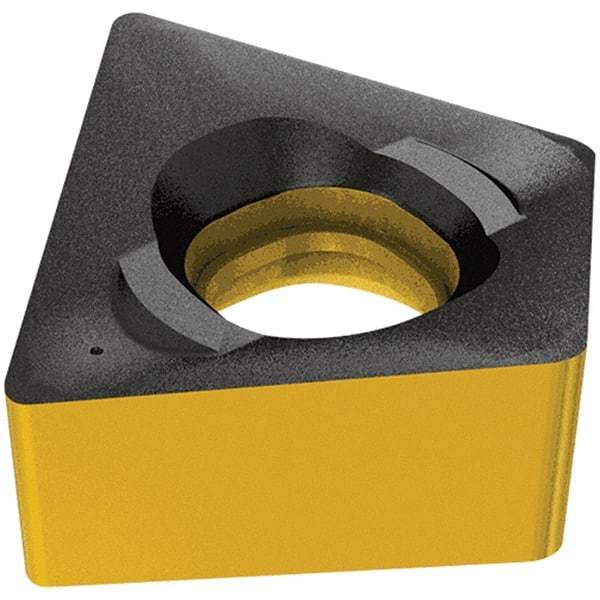

Iscar - XNMU130608 MM Grade IC5400 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 0.335" Thick, 0.79mm Corner Radius
Item #: 30730394
Brand: Iscar
Model #: 5607641
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNMU |
| Insert Size | 130608 |
| Material | Carbide |
| Manufacturer's Grade | IC5400 |
| Coating | TiCN/Al2O3/TiN |
| Length (Decimal Inch) | 0.5120 |
| Thickness (Decimal Inch) | 0.3350 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Coating Process | CVD |
| Shape | Square |
| Chipbreaker | MM |
| ISO Number | XNMU 130608PNN-MM |
