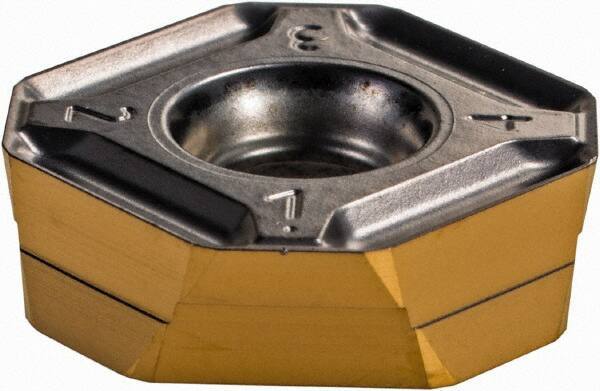

Iscar - IQ845 SYHU070400 MM Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.165" Thick, 0.543" Inscribed Circle
Item #: 30730998
Brand: Iscar
Model #: 5667044
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | IQ845 SYHU |
| Insert Size | 070400 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.5430 |
| Thickness (Decimal Inch) | 0.1650 |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1810 |
| ISO Number | IQ845 SYHU 070400N-MM |
