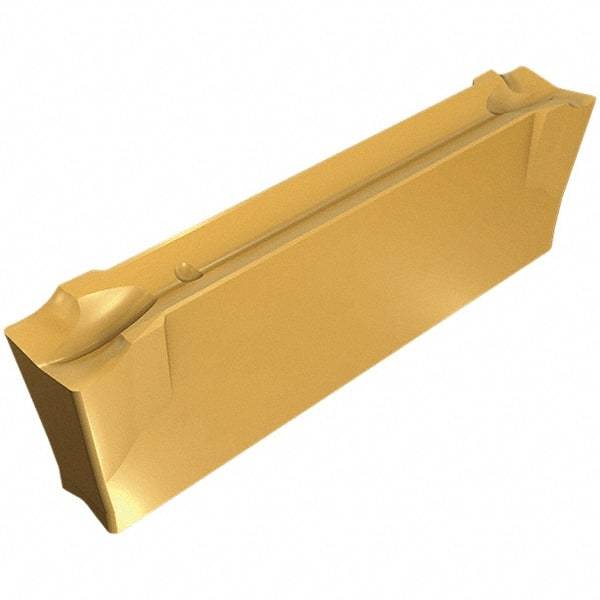

Iscar - DGN4003 JT IC830 Grade, 0.157" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.012" Cnr Rad, AlTiN/TiN Coated, Double End
Item #: 30731582
Brand: Iscar
Model #: 6003685
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Insert Size | 4003 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.99 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Manufacturer's Grade | IC830 |
| Coating | AlTiN/TiN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Chipbreaker | JT |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting |
| Coating Process | PVD |
| Overall Length (mm) | 18.80 |
| Overall Length (Decimal Inch) | 0.7400 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Corner Radius (mm) | 0.30 |
