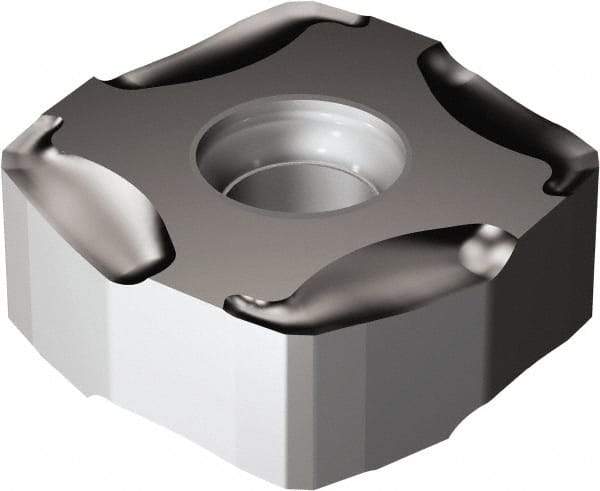

Sandvik Coromant - R3651505 PL Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 5.66mm Thick, 15mm Inscribed Circle, 0.3mm Corner Radius
Item #: 30848584
Brand: Sandvik Coromant
Model #: 7101102
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R365 |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Inscribed Circle (mm) | 15.00 |
| Inscribed Circle (Decimal Inch) | 0.5906 |
| Thickness (mm) | 5.66 |
| Thickness (Decimal Inch) | 0.2228 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Corner Radius (mm) | 0.30 |
| Primary Workpiece Material | P |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | PL |
| Manufacturers Catalog Number | R365-1505ZNE-PL 1130 |
