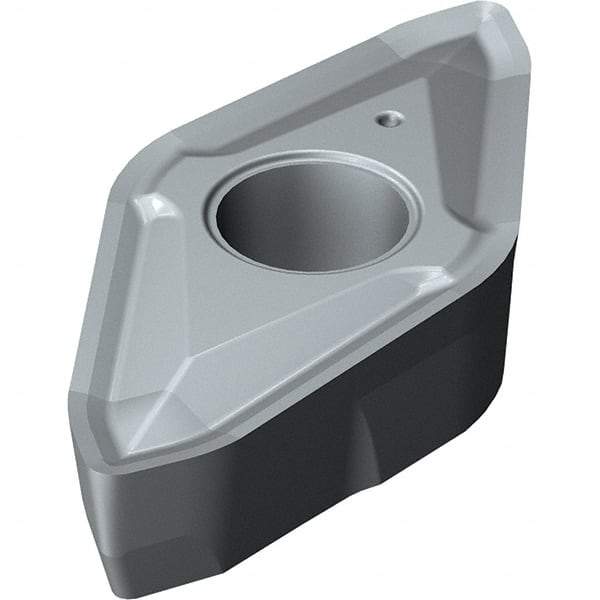

Sandvik Coromant - CP-B1108 H3 Grade H13A Carbide Turning Insert - Uncoated, 11mm Inscr Circle, 5mm Thick, 0.7938mm Corner Radius
Item #: 30849251
Brand: Sandvik Coromant
Model #: 7433939
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CP-B |
| Insert Size | 1108 |
| Material | Carbide |
| Inscribed Circle (mm) | 11.00 |
| Inscribed Circle (Decimal Inch) | 0.4331 |
| Thickness (Decimal Inch) | 0.1969 |
| Thickness (mm) | 5.00 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | H3 |
| ISO Number | CP-B1108-H3 H13A |
| Relief Angle | 6 |
| Manufacturers Catalog Number | CP-B1108-H3 H13A |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn Prime |
