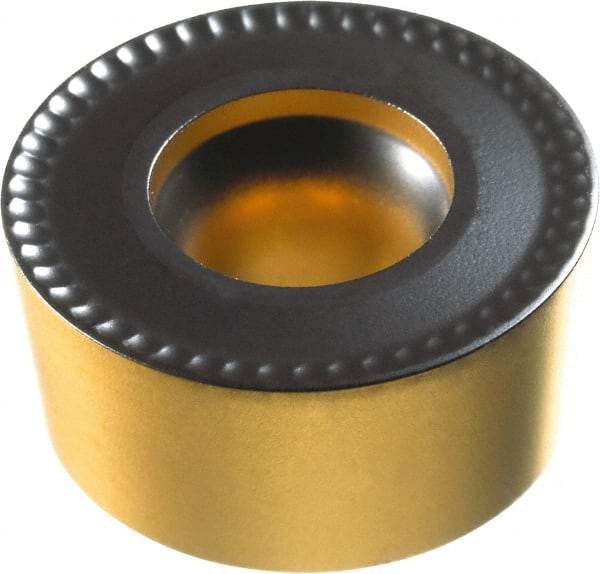

Sandvik Coromant - RCMT1606 M0 Grade 2220 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, Round, 16mm Inscr Circle, 6.35mm Thick, 8mm Corner Radius
Item #: 30849293
Brand: Sandvik Coromant
Model #: 7450172
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 1606 |
| Material | Carbide |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 8 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Manufacturer's Grade | 2220 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | M0 |
| ISO Number | RCMT 16 06 M0 2220 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | RCMT 16 06 M0 2220 |
| Primary Workpiece Material | M |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Shape | Round |
