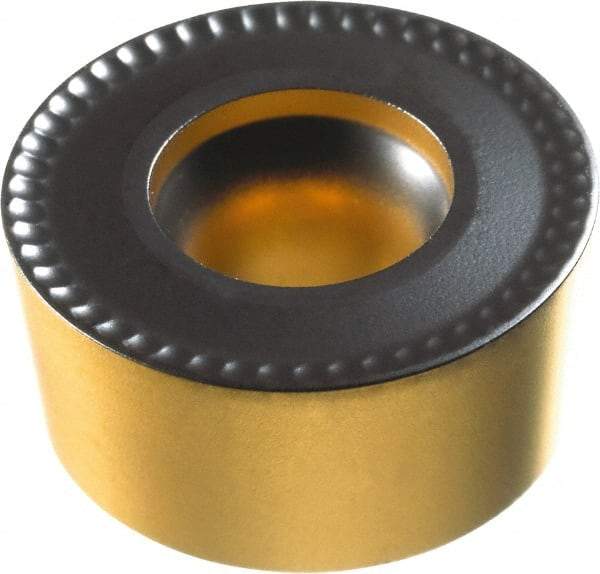

Sandvik Coromant - RCMT2006 M0 Grade 2220 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, Round, 20mm Inscr Circle, 6.35mm Thick, 10mm Corner Radius
Item #: 30849301
Brand: Sandvik Coromant
Model #: 7450173
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 2006 |
| Material | Carbide |
| Inscribed Circle (mm) | 20.00 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 10 |
| Corner Radius (Decimal Inch) | 0.3937 |
| Manufacturer's Grade | 2220 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | M0 |
| ISO Number | RCMT 20 06 M0 2220 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | RCMT 20 06 M0 2220 |
| Primary Workpiece Material | M |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Shape | Round |
