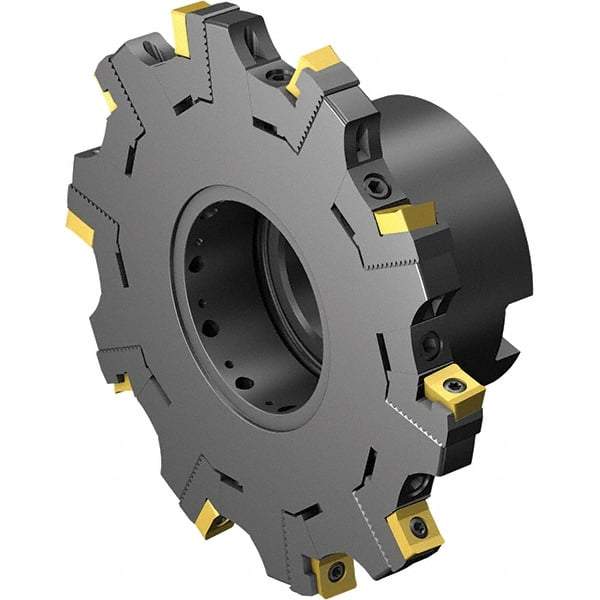

Sandvik Coromant - Arbor Connection, 0.4724" Cutting Width, 0.8661" Depth of Cut, 100mm Cutter Diam, 1-1/16" Hole Diam, Indexable Slotting Cutter - 1-1/16" Shank Diam, Right Hand Cutting Direction
Item #: 30850614
Brand: Sandvik Coromant
Model #: 7295412
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (Decimal Inch) | 0.472441 |
| Cutting Width (mm) | 12 |
| Maximum Depth of Cut (Decimal Inch) | 0.866142 |
| Maximum Depth of Cut (mm) | 22 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Shank Diameter (mm) | 27.00 |
| Shank Diameter (Decimal Inch) | 1.06299 |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Maximum RPM | 15900 |
| Minimum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (Decimal Inch) | 0.590551 |
| Maximum Cutting Width (mm) | 15 |
| Hub Diameter (mm) | 51.00 |
| Hub Diameter (Decimal Inch) | 2.0079 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-100Q27FM |
