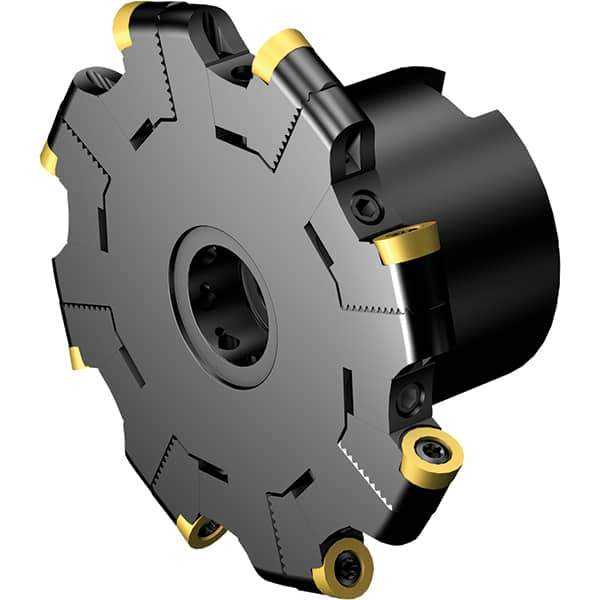

Sandvik Coromant - 0.4724" Cutting Width, 1.6535" Depth of Cut, 1.5748" Hole Diam, 12 Tooth Indexable Slotting Cutter - Right Hand Cutting Direction
Item #: 30851034
Brand: Sandvik Coromant
Model #: 7370514
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (Decimal Inch) | 0.472441 |
| Cutting Width (mm) | 12 |
| Maximum Depth of Cut (Decimal Inch) | 1.65354 |
| Maximum Depth of Cut (mm) | 42 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 12 |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Maximum RPM | 12400 |
| Hub Diameter (mm) | 73.00 |
| Hub Diameter (Decimal Inch) | 2.8740 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-162Q40FMQ |
