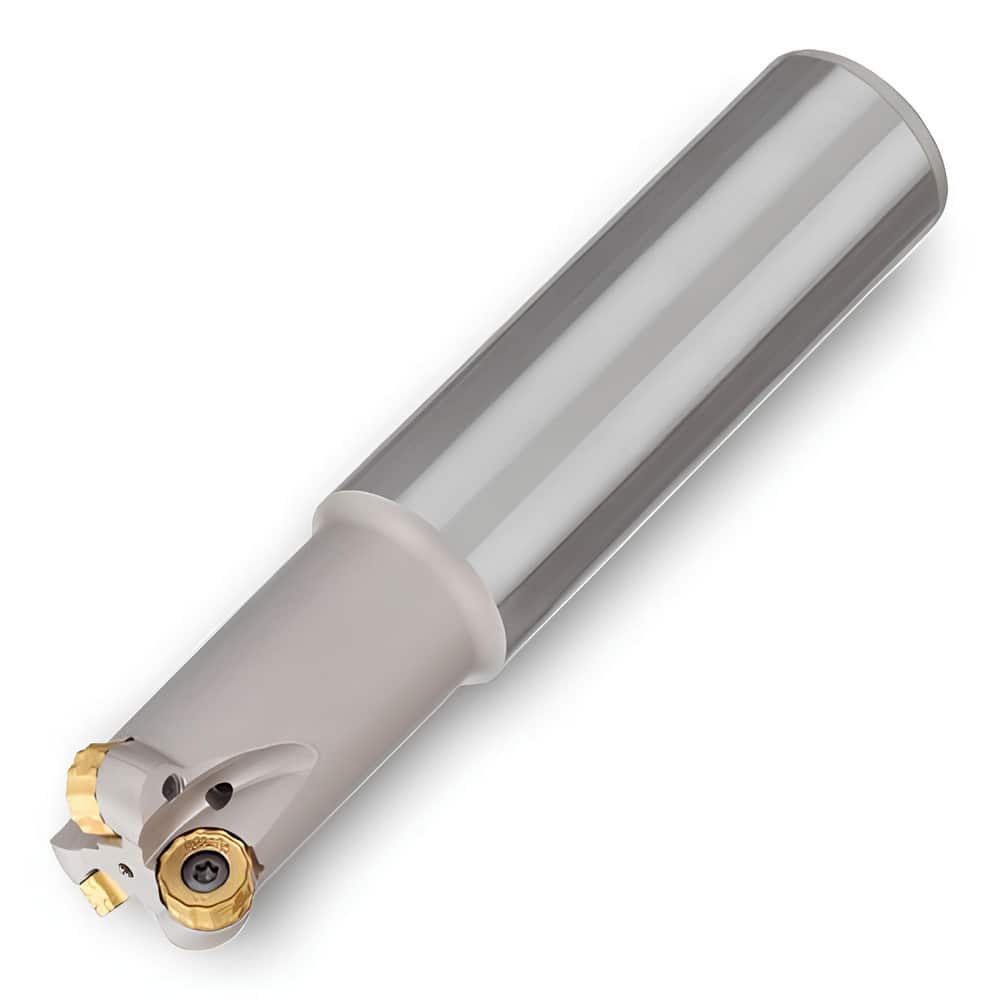

Indexable Copy End Mills; Maximum Depth Of Cut: 0.2360 in; Shank Type: Cylindrical; Toolholder Style: 1DE1H; Shank Diameter (Inch): 1.2500; Shank Diameter (mm): 1.2500; Maximum Ramping Angle: 1.3 ™; Compatible Insert Style: RNLU; Compatible Insert Size C
Item #: 30906077
Brand: Ingersoll Cutting Tools
Model #: 3031500
Product Specifications
| Maximum Depth Of Cut | 0.2360 in |
| Shank Type | Cylindrical |
| Toolholder Style | 1DE1H |
| Shank Diameter (Inch) | 1.2500 |
| Shank Diameter (mm) | 1.2500 |
| Maximum Ramping Angle | 1.3 ? |
| Compatible Insert Style | RNLU |
| Compatible Insert Size Code | 1205 |
| Number Of Cutter Inserts | 3 |
| Series | 1DE1H |
| Overall Length (mm) | 1.50 |
| Overall Length (Decimal Inch) | 1.50 |
| Overall Length (Inch) | 1.50 |
| Flute Type | Straight |
| Tool Application | Facing; Pocketing; Milling; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 0.7790 in |
| Head Length (Decimal Inch) | 2.2200 in |
| Head Length (Inch) | 2.2200 in |
| Shank Length (Decimal Inch) | 3.7500 in |
| Shank Length (mm) | 3.7500 in |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 in |
| Minimum Cutting Diameter (Decimal Inch) | 0.7790 in |
