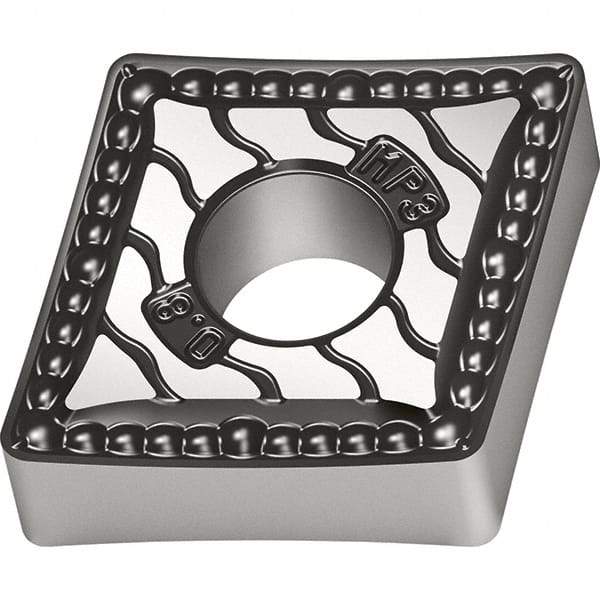

Walter - CNMG322 MP3 Grade WPP30S Carbide Turning Insert - TiCN/Al2O3/TiCN Finish, 80° Diamond, 3/8" Inscr Circle, 1/8" Thick, 0.031" Corner Radius
Item #: 31004070
Brand: Walter
Model #: 7248322
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 322 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3810 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WPP30S |
| Coating | TiCN/Al2O3/TiCN |
| Chip Breaker | MP3 |
| Insert Length (Decimal Inch) | 0.3810 |
| Overall Length (Decimal Inch) | 0.3810 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | CNMG090308-MP3 WPP30S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 7248322 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CNMG |
| Maximum Depth of Cut (Decimal Inch) | 0.3810 |
| Cutting Width (mm) | 9.67 |
| Shape | Diamond |
