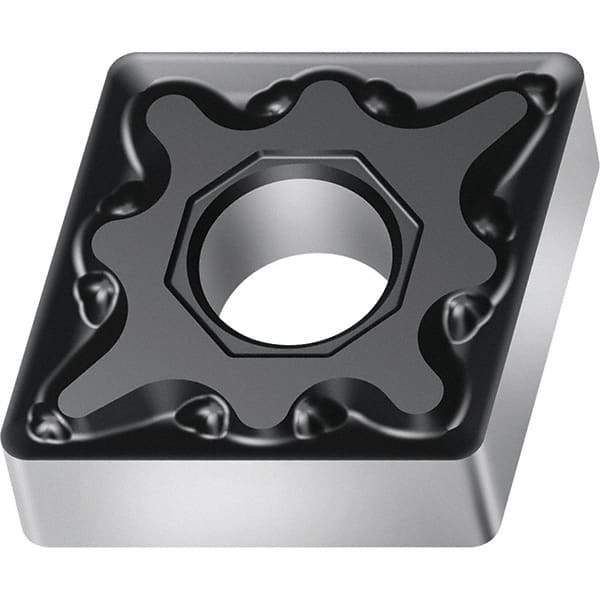

Walter - CNMG542 MM5 Grade WMP20S Carbide Turning Insert - TiCN/Al2O3/TiCN Finish, 80° Diamond, 5/8" Inscr Circle, 1/4" Thick, 0.031" Corner Radius
Item #: 31006034
Brand: Walter
Model #: 7376527
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 542 |
| Material | Carbide |
| Length (Decimal Inch) | 0.6350 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WMP20S |
| Coating | TiCN/Al2O3/TiCN |
| Chip Breaker | MM5 |
| Insert Length (Decimal Inch) | 0.6350 |
| Overall Length (Decimal Inch) | 0.6350 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | CNMG160608-MM5 WMP20S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 7376527 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CNMG |
| Maximum Depth of Cut (Decimal Inch) | 0.6350 |
| Cutting Width (mm) | 16.12 |
| Shape | Diamond |
