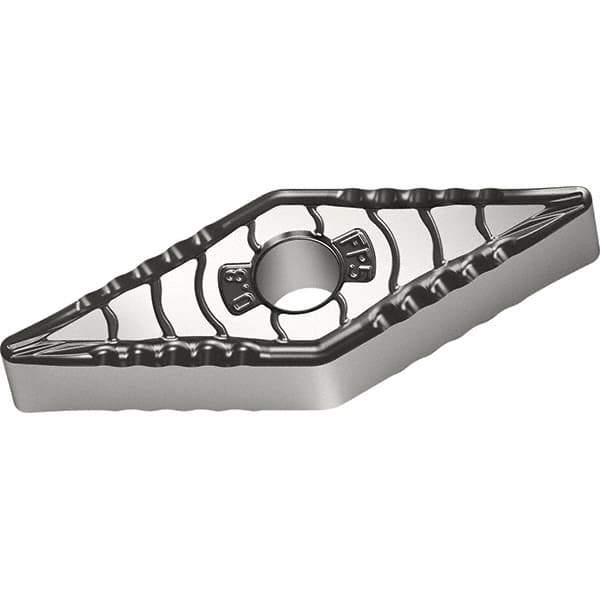

Walter - VNMG333 FP5 Grade WPP10S Carbide Turning Insert - TiCN/Al2O3/TiCN Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 0.047" Corner Radius
Item #: 31006059
Brand: Walter
Model #: 7268656
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 333 |
| Material | Carbide |
| Length (Decimal Inch) | 0.6540 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | WPP10S |
| Coating | TiCN/Al2O3/TiCN |
| Chip Breaker | FP5 |
| Insert Length (Decimal Inch) | 0.6540 |
| Overall Length (Decimal Inch) | 0.6540 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | VNMG160412-FP5 WPP10S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 7268656 |
| Primary Workpiece Material | P |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | VNMG |
| Maximum Depth of Cut (Decimal Inch) | 0.6540 |
| Cutting Width (mm) | 16.61 |
| Shape | Diamond |
