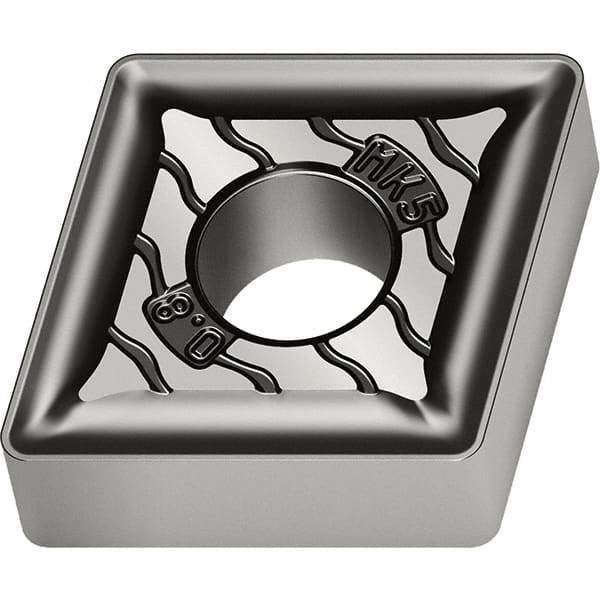

Walter - CNMG432 MK5 Grade WKP30S Carbide Turning Insert - TiCN/Al2O3/TiCN Finish, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 0.031" Corner Radius
Item #: 31006166
Brand: Walter
Model #: 7268641
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 432 |
| Material | Carbide |
| Length (Decimal Inch) | 0.5080 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WKP30S |
| Coating | TiCN/Al2O3/TiCN |
| Chip Breaker | MK5 |
| Insert Length (Decimal Inch) | 0.5080 |
| Overall Length (Decimal Inch) | 0.5080 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | CNMG120408-MK5 WKP30S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 7268641 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CNMG |
| Maximum Depth of Cut (Decimal Inch) | 0.5080 |
| Cutting Width (mm) | 12.90 |
| Shape | Diamond |
