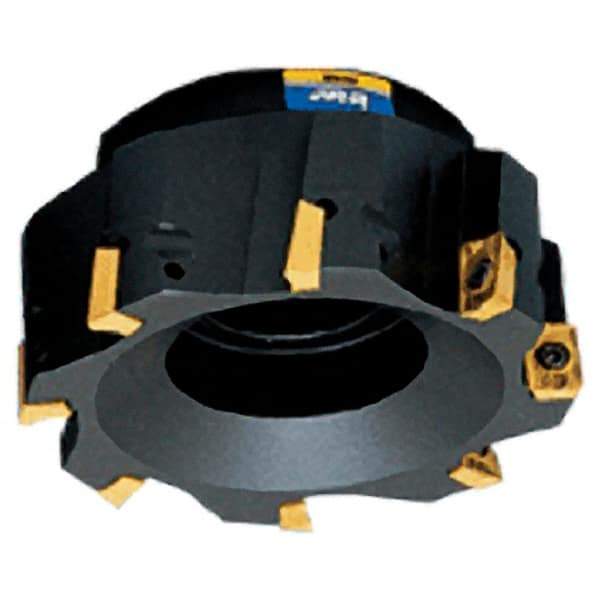

Iscar - 6 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 14.3mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, AD.. 150 Insert Compatibility, Series Heli2000
Item #: 31990302
Brand: Iscar
Model #: 3102101
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | AD.. 150 |
| Series | Heli2000 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 14.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.5630 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 F90A-15 |
| Number of Flutes | 6 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Complete Insert Compatibility | ADCA 150308; ADCA 150320; ADCA 150330; ADCA 150340; ADCA 150350; ADCR 1505PDFR; ADCR 1505PDFR-P; ADCT 1505PDFR-HM; ADKR 150504PDR-HM; ADKR 1505PDR-HM; ADKT 150516R-HM; ADKT 150520R-HM; ADKT 150524R-HM; ADKT 150532R-HM; ADKT 150540R-HM |
