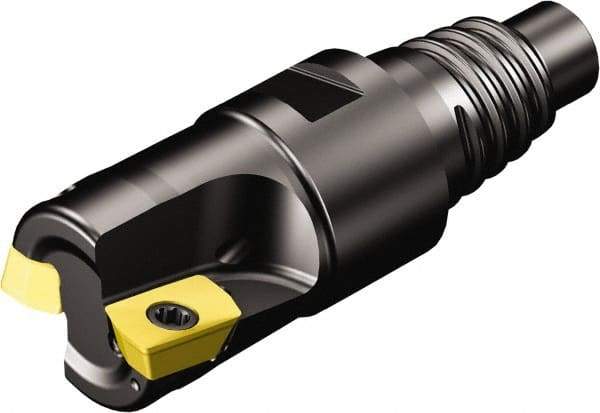

Sandvik Coromant - 4 Inserts, 1" Cut Diam, 0.9646" Arbor Diam, 0.394" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 1.378" High, R390-11.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 33182783
Brand: Sandvik Coromant
Model #: 6416914
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.9646 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 1.3780 |
| Insert Compatibility | R390-11.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA390 |
| Maximum RPM | 36100 |
| Cutting Edge Length (Decimal Inch) | 0.3940 |
| ISO Number | RA390025EH2511H |
| Complete Insert Compatibility | R390-11.. |
| Toolholder Material | Steel |
