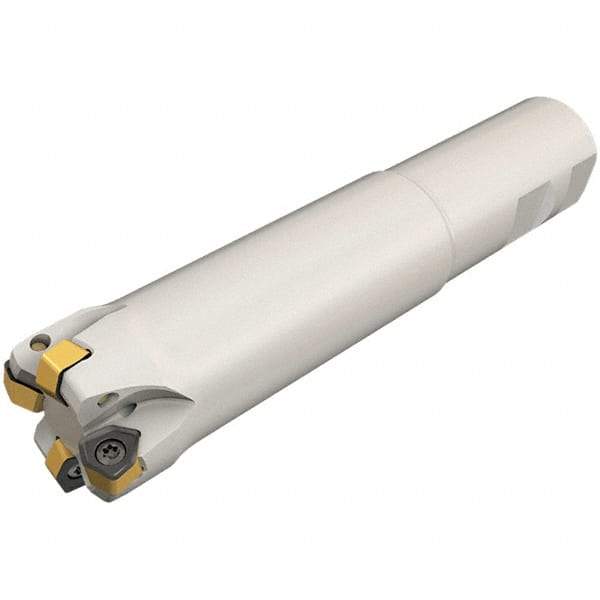

Iscar - 1-1/4" Cut Diam, 0.059" Max Depth, 1-1/4" Shank Diam, Weldon Shank Indexable High-Feed End Mill - Screw Holding Method, H600 WXCU Insert, FF EWX-07 Toolholder, Through Coolant
Item #: 33218678
Brand: Iscar
Model #: 3106833
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Cutter Inserts | 3 |
| Insert Style | H600 WXCU |
| Toolholder Style | FF EWX-07 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 0.7400 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 4.1200 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 6.4500 |
| Projection (Decimal Inch) | 4.0000 |
| Manufacturers Catalog Number | FF EWXD1.25-3-4.0W1.25-07 |
