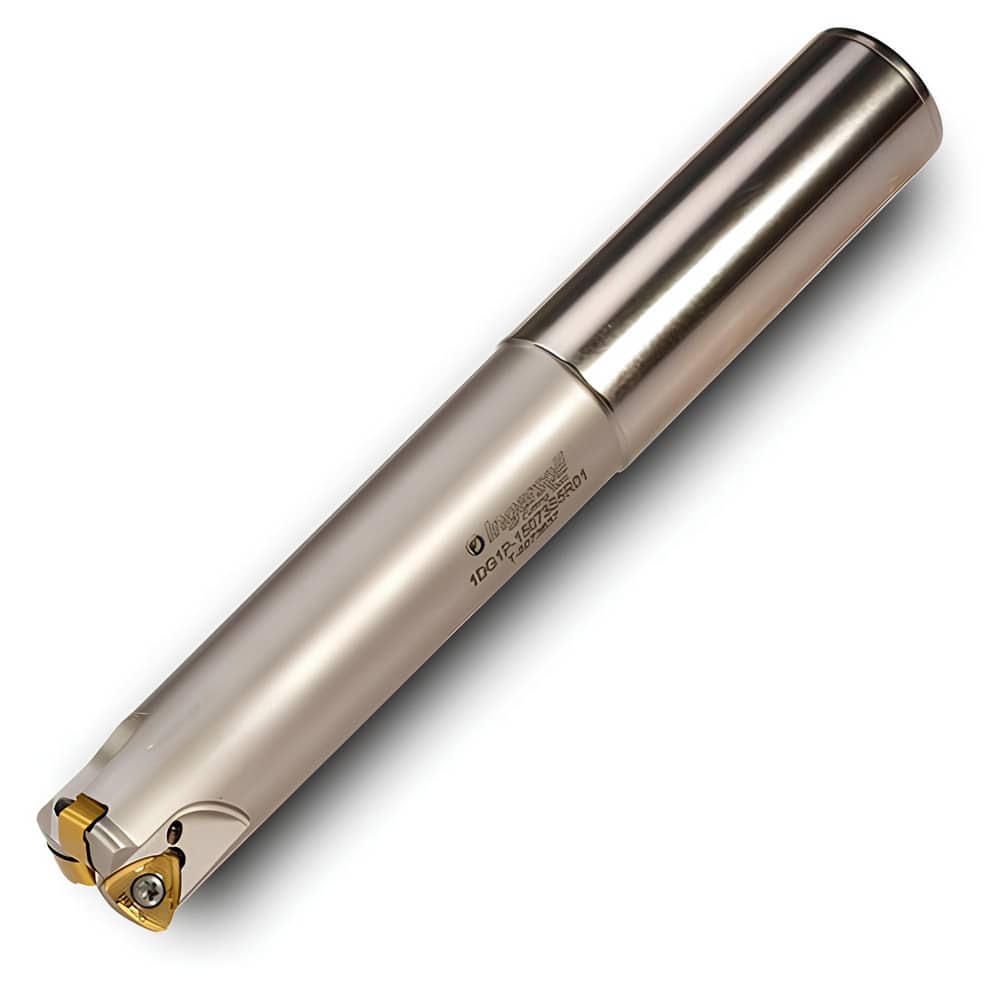

Indexable High-Feed End Mill: 1-1/2″ Cut Dia, 1-1/2″ Cylindrical Shank Uses 3 UNEU Inserts, 0.0787″ Max Depth, 10″ OAL, Through Coolant
Item #: 33386475
Brand: Ingersoll Cutting Tools
Model #: 2912703
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.7550 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Toolholder Style | 1DG1P |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (mm) | 1.50 |
| Maximum Ramping Angle | 1.50 |
| Compatible Insert Style | UNEU |
| Compatible Insert Size Code | 1307 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (Inch) | 10 |
| Overall Length (mm) | 10.00 |
| Series | 1DG1P |
| Flute Type | Straight |
| Head Length (Decimal Inch) | 5.6200 |
| Functional Length (Decimal Inch) | 5.6200 |
| Projection (Decimal Inch - 4 Decimals) | 7.3400 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
