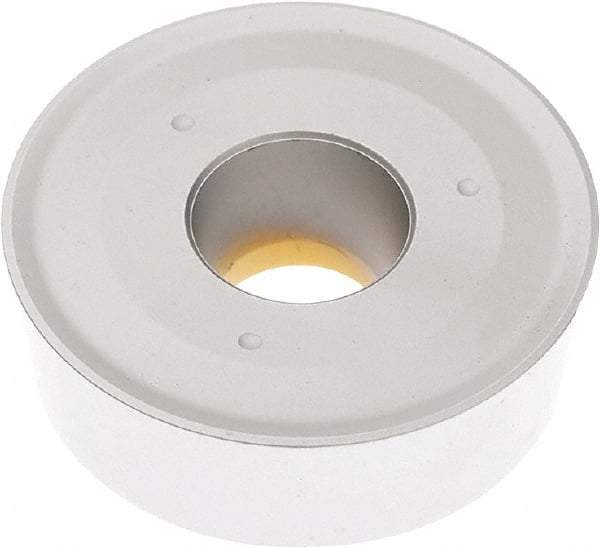

Seco - RCMX100300 RR94 Grade TP3501 Carbide Turning Insert - TiCN/Al2O3 Finish, Round, 10mm Inscr Circle, 1/8" Thick
Item #: 33725243
Brand: Seco
Model #: 48965
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 100300 |
| Material | Carbide |
| Inscribed Circle (mm) | 10.00 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Manufacturer's Grade | TP3501 |
| Coating | TiCN/Al2O3 |
| Material Grade | C4/C5 |
| Chip Breaker | RR94 |
| Relief Angle | 7 |
| Coating Process | Duratomic |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| FullRadius | Yes |
| MultiUseTool | Yes |
| Shape | Round |
