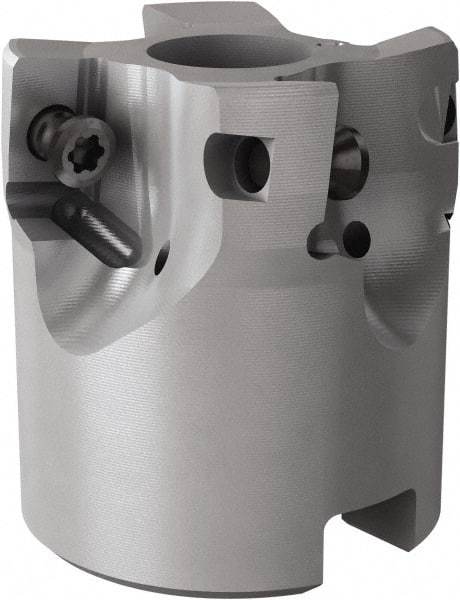

Seco - 4 Inserts, 40mm Cut Diam, 16mm Arbor Diam, 18mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 40mm High, XOMX18.. & XOEX18.. Insert Compatibility, Through Coolant, Series Turbo 18
Item #: 33746413
Brand: Seco
Model #: 61747
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 16.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | XOMX18..; XOEX18.. |
| Series | Turbo 18 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | R220.69 |
| Number of Flutes | 4 |
| Rake | Positive |
| Hub Diameter (mm) | 35.00 |
| Keyway Width (mm) | 8.40 |
| Maximum RPM | 9900 |
| Pitch | Normal |
| Minimum Insert Radius (Inch) | 1/32 |
| Toolholder Material | Steel |
