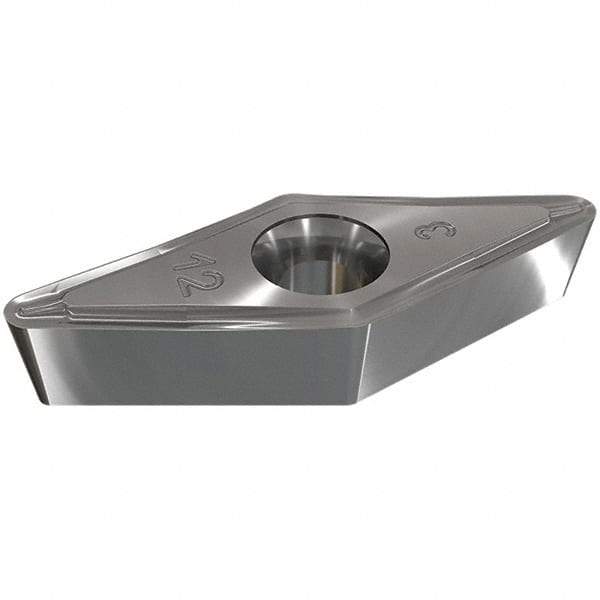

Iscar - VCMT221 SM Grade IC806 Carbide Turning Insert - AlTiN Finish, 35° Diamond, 6.35mm Inscr Circle, 3.18mm Thick, 0.4mm Corner Radius
Item #: 33821315
Brand: Iscar
Model #: 5599761
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCMT |
| Insert Size | 221 |
| Material | Carbide |
| Length (mm) | 11.10 |
| Length (Decimal Inch) | 0.4370 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC806 |
| Coating | AlTiN |
| Chip Breaker | SM |
| Hole Diameter (mm) | 2.90 |
| Hole Diameter (Decimal Inch) | 0.1140 |
| ISO Number | VCMT 221-SM |
| Rake | Positive |
| Relief Angle | 7 |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5599761 |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | None |
| Included Angle | 35 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Multi Use Application | Turning |
| Shape | Diamond |
