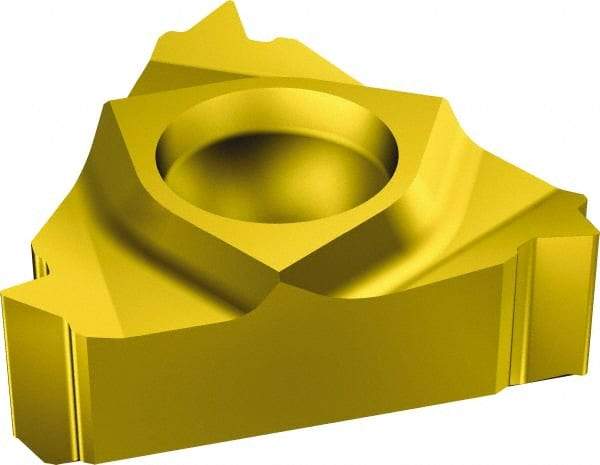

Sandvik Coromant - 166 Internal Right Hand 19 Whitworth Laydown Threading Insert - Grade 4125, TiAlN+TiN Coated Carbide, 6.35mm Inscribed Circle
Item #: 34998617
Brand: Sandvik Coromant
Model #: 5742054
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 166 |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | Whitworth |
| Manufacturer's Grade | 4125 |
| Threads Per Inch | 19 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Coating | TiAlN+TiN |
| Coating Process | PVD |
| Coating Process | PVD |
| Chipbreaker | A |
| Number of Teeth Per Side | 1 |
| Series | T-Max U-Lock |
| Insert Size | 11R |
