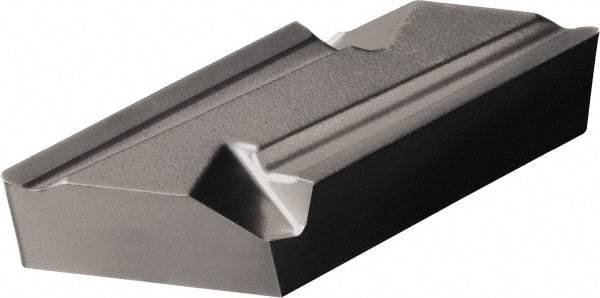

Sandvik Coromant - KNUX1604 11 Grade 5015 Cermet Turning Insert - Uncoated, 55° Parallelogram, 3/16" Thick, 0.5mm Corner Radius
Item #: 34999151
Brand: Sandvik Coromant
Model #: 5733232
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | KNUX |
| Insert Size | 1604 |
| Material | Cermet |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.5 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Manufacturer's Grade | 5015 |
| Coating | Uncoated |
| Chip Breaker | 11 |
| ISO Number | KNUX 16 04 05R11 5015 |
| Relief Angle | 0 |
| Included Angle | 55 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 16.00 |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Rounded |
| Shape | Parallelogram |
