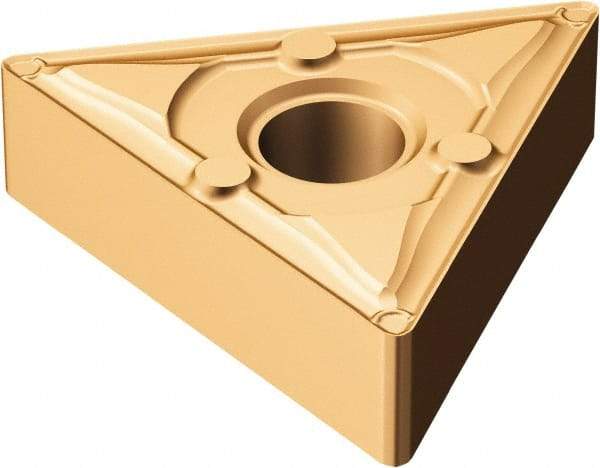

Sandvik Coromant - TNMX331 WF Grade 1125 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 35001916
Brand: Sandvik Coromant
Model #: 5754754
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMX |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | WF |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | TNMX 16 04 04-WF 1125 |
| Lead Angle | 91.000 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 16.10 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Rounded |
| Shape | Triangle |
