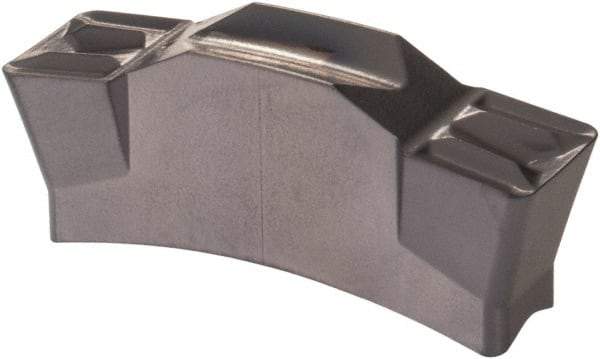

Iscar - 635080TGMF Grade IC908, 6.35mm Cutting Width Carbide Grooving Insert - 18.59mm Max Depth of Cut, Neutral, 0.79mm Corner Radius, TiN/TiAlN Finish
Item #: 35530567
Brand: Iscar
Model #: 6450088
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TGMF |
| Insert Size | 635080 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 18.59 |
| Maximum Depth of Cut (Decimal Inch) | 0.7320 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Coating | TiN/TiAlN |
| Insert Hand | Neutral |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | PVD |
| Overall Length (mm) | 22.15 |
| Overall Length (Decimal Inch) | 0.8720 |
| Series | Top Grip |
| ISO Number | TGMF 635-080 |
| Manufacturers Catalog Number | TGMF 635-080 |
