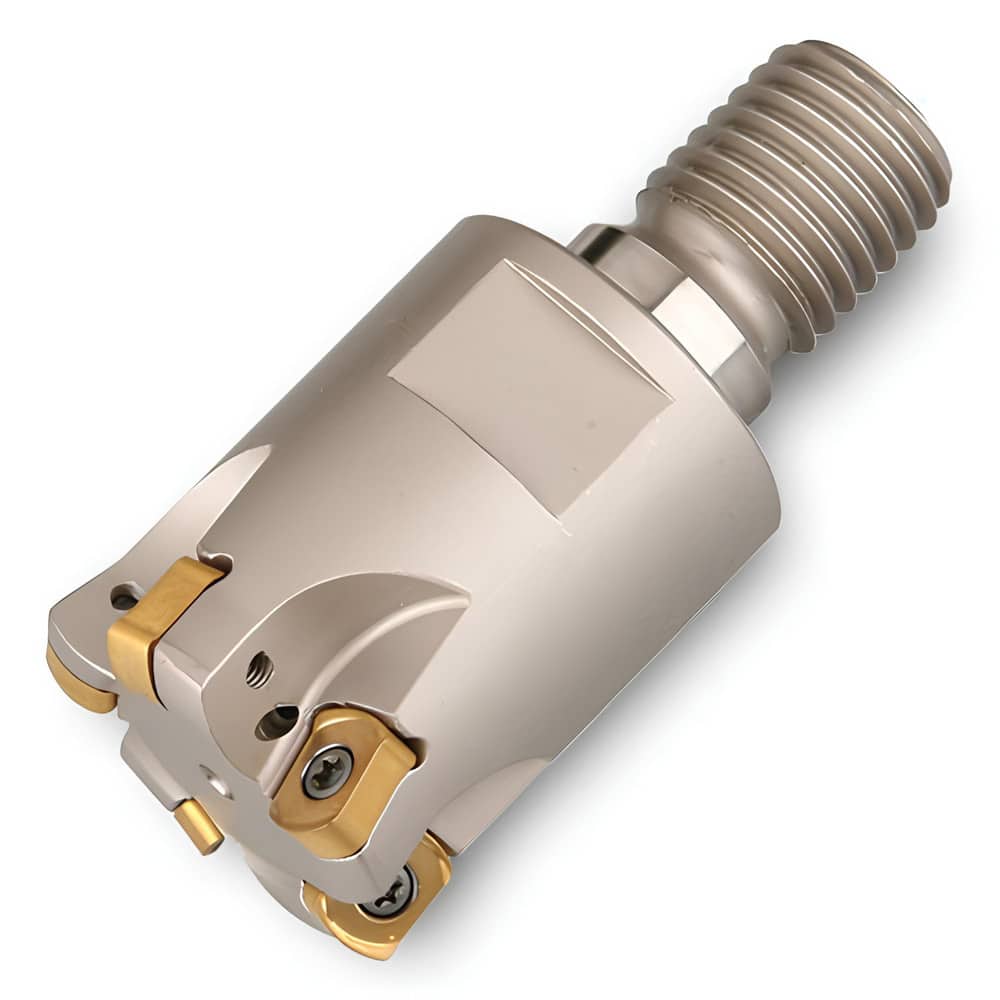

Indexable High-Feed End Mill: 1-1/4″ Cut Dia, 1.14″ Modular Shank Uses 5 UNLU Inserts, 0.043″ Max Depth, 1.57″ OAL, Through Coolant
Item #: 35595453
Brand: Ingersoll Cutting Tools
Model #: 3029350
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.9460 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0430 |
| Toolholder Style | 1TG1F |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 1.1400 |
| Shank Diameter (mm) | 1.14 |
| Maximum Ramping Angle | 0.70 |
| Compatible Insert Style | UNLU |
| Compatible Insert Size Code | 0603 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Overall Length (Decimal Inch) | 1.5700 |
| Overall Length (mm) | 1.57 |
| Series | 1TG1F |
| Flute Type | Straight |
| Modular Connection Size | M16 |
| Head Length (Decimal Inch) | 1.5700 |
| Functional Length (Decimal Inch) | 1.5700 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
