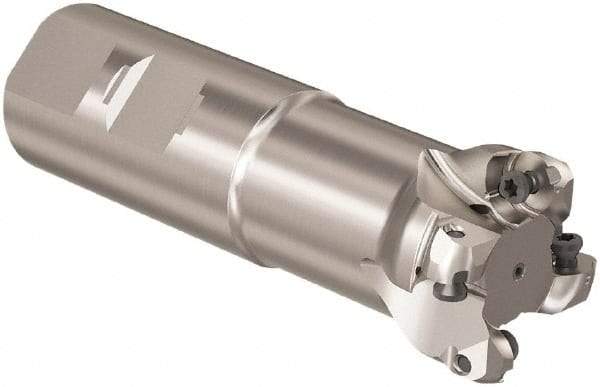

Seco - R217 32mm Weldon Shank Milling Tip Insert Holder & Shank - 3.110236" Projection, 1" Neck Diam, M16 Neck Thread, 40mm Nose Diam, 115mm OAL, Tool Steel Tool Holder
Item #: 35795897
Brand: Seco
Model #: 60365
Exact Tooling IR#: 04
Features and Benefits
Weldon flats, also known as Weldon Shanks, are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | R217 |
| Shank Type | Weldon Shank |
| Shank Taper Size | None |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Projection (mm) | 79.00 |
| Projection (Inch) | 3.1102 |
| Projection (Decimal Inch) | 3.1102 |
| Neck Diameter (Decimal Inch) | 1.0000 |
| Neck Thread Size | M16 |
| Nose Diameter (mm) | 40.00 |
| Nose Diameter (Decimal Inch) | 1.5748 |
| Toolholder Material | Tool Steel |
| Overall Length (mm) | 115.00 |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
