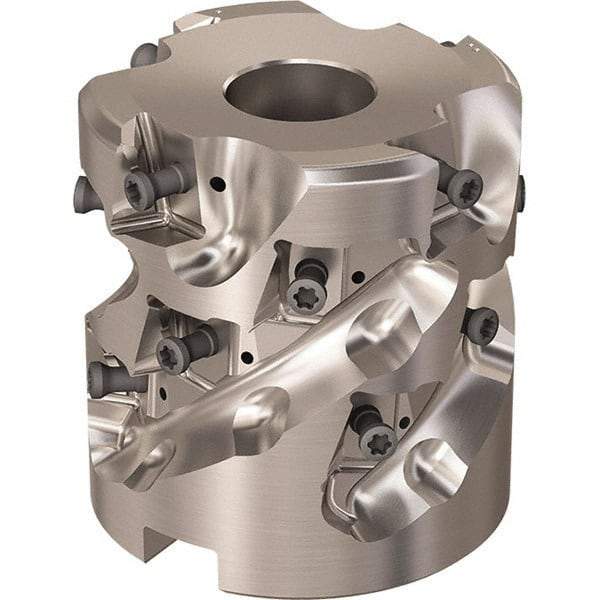

Seco - 16 Inserts, 2.4803" Cut Diam, 1.06" Arbor Diam, 46mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 2.5591" High, LOEX-12 Insert Compatibility, Through Coolant, Series Square T4-12
Item #: 35835529
Brand: Seco
Model #: 29299
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2.4803 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (Inch) | 1.0600 |
| Lead Angle | 90 |
| Overall Height (Inch) | 2.5591 |
| Insert Compatibility | LOEX-12 |
| Series | Square T4-12 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 46.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.8110 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 59.60 |
| Hub Diameter (Decimal Inch) | 2.3465 |
| Hub Diameter (Inch) | 2.346 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Inch) | 0.4882 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Pitch | Normal |
| Toolholder Material | Steel |
