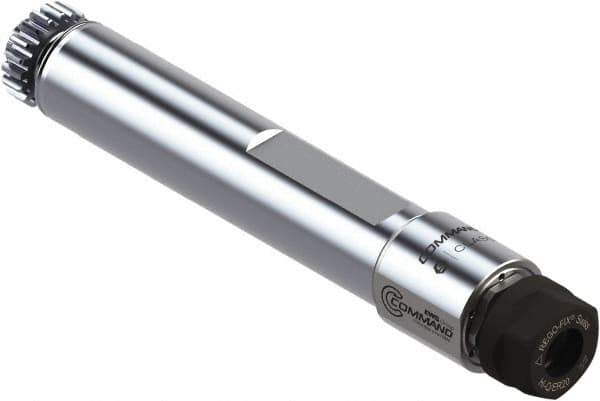

Command Tooling - 0.5mm to 13mm Capacity, 62mm Projection, Swiss Citizen, ER20 Collet Chuck - 225mm OAL, 32mm Shank Diam
Item #: 36050664
Brand: Command Tooling
Model #: LCA1C2001
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Swiss Citizen |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2590 |
| Projection (mm) | 62.00 |
| Projection (Decimal Inch) | 2.4400 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 13.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.5110 |
| Overall Length (mm) | 225.00 |
| Overall Length (Decimal Inch) | 8.8600 |
| Maximum RPM | 6000 |
| PSC Code | 5136 |
| TIR (mm) | 0.0020 |
