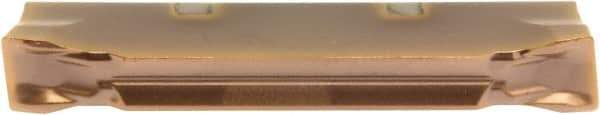

Sumitomo - 4002GCML CG Grade AC530U, 0.1574803" Cutting Width Carbide Grooving Insert - 1" Max Depth of Cut, Left Hand, 0.2mm Corner Radius
Item #: 36076578
Brand: Sumitomo
Model #: 18HMAMT
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GCML |
| Insert Size | 4002 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Inch) | 0.1575 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 25.40 |
| Maximum Depth of Cut (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Manufacturer's Grade | AC530U |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 3.99 |
| Cutting Height (Inch) | 0.1570 |
| Cutting Height (Decimal Inch) | 0.1570 |
| Lead Angle | 5 |
| Relief Angle | 5 |
| Insert Seat Size | 4 |
| Chipbreaker | CG |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0079 |
| Maximum Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Inch) | 0.0079 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Series | GND |
| Overall Width (mm) | 4.00 |
| Overall Width (Inch) | 0.1575 |
| Overall Width (Decimal Inch) | 0.1575 |
