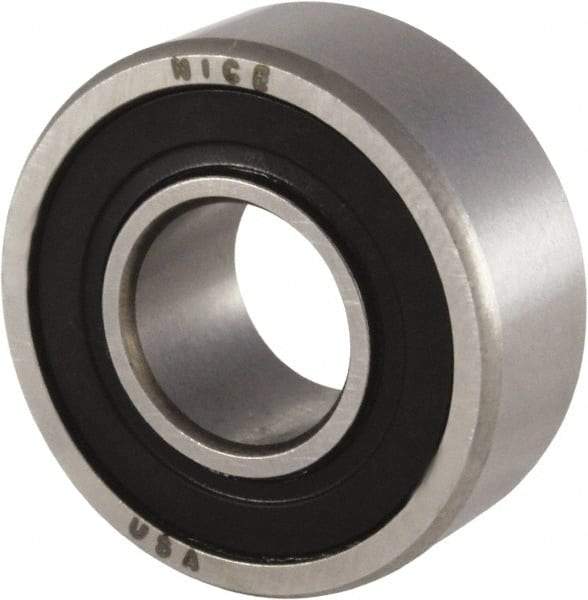

Nice - 1/4" Bore Diam, 11/16" OD, Double Seal Precision Ground Radial Ball Bearing - 5/16" Wide, 1 Row, Round Bore, 170 Lb Static Capacity, 511 Lb Dynamic Capacity
Item #: 36194991
Brand: Nice
Model #: 1602DCTNTG18
Exact Tooling IR#: 04
Features and Benefits
Double Seal Bearings are factory lubricated with oil or grease and designed to retain lubricants while keeping contaminates out. The seal is on each side of the bearing and is located on the outer race making some contact with the inner race.
Round bore bearings are designed for mounting on round shafts.
| Product Specifications | |
|---|---|
| Type | Precision Ground |
| Style | Double Seal |
| Bore Diameter (Inch) | 1/4 |
| Bore Diameter (Decimal Inch) | 0.2500 |
| Outside Diameter (Inch) | 11/16 |
| Outside Diameter (Decimal Inch) | 0.6875 |
| Width (Inch) | 5/16 |
| Width (Decimal Inch) | 0.3125 |
| Flange Type | Without Flange |
| Number of Rows | 1 |
| Bore Type | Round |
| Static Load Capacity (Lb.) | 170 |
| Dynamic Load Capacity (Lb.) | 511 |
