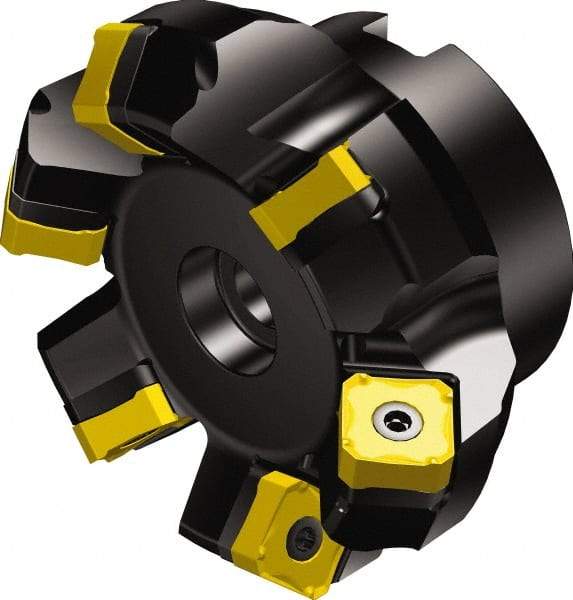

Sandvik Coromant - 2-1/2" Cut Diam, 1" Arbor Hole, 0.2362" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, 345R-13T5 Insert, Right Hand Cut, Through Coolant, Series CoroMill 345
Item #: 36432821
Brand: Sandvik Coromant
Model #: 5722742
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.7717 |
| Insert Compatibility | 345R-13T5 |
| Series | CoroMill 345 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 7 |
| Cutter Style | A345..Rxx |
| Keyway Width (Decimal Inch) | 0.3839 |
| Maximum RPM | 15400 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 345R-13T5 |
| Toolholder Material | Steel |
