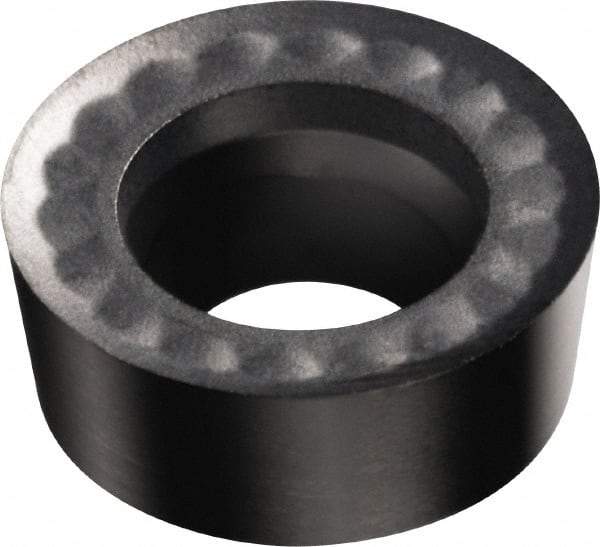

Sandvik Coromant - RCGX0803M0 AL Grade H10 Carbide Turning Insert - Uncoated, Round, 8mm Inscr Circle, 1/8" Thick
Item #: 36438562
Brand: Sandvik Coromant
Model #: 5740092
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 0803M0 |
| Material | Carbide |
| Length (mm) | 3.18 |
| Length (Inch) | 1/8 |
| Length (Decimal Inch) | 0.1250 |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Manufacturer's Grade | H10 |
| Coating | Uncoated |
| Chip Breaker | AL |
| Insert Length (Decimal Inch) | 0.1250 |
| OverallLength (mm) | 3.18 |
| Overall Length (Decimal Inch) | 0.1250 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| ISO Number | RCGX 08 03 M0-AL H10 |
| Relief Angle | 7 |
| Insert Holding Method | Screw |
| Shape | Round |
