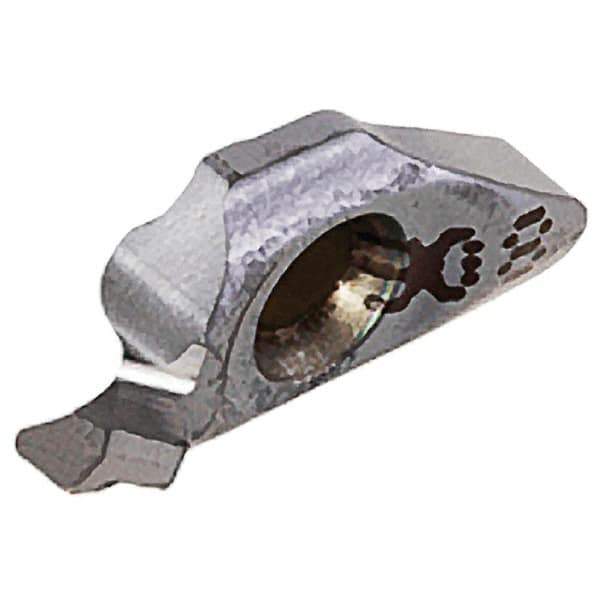

Iscar - MITR8-MT2-0.1 Grade IC908, Internal ISO Threading Insert - 1.5 to 2mm Int Pitch, Right Hand Insert, TiAlN Finish, Carbide
Item #: 37050085
Brand: Iscar
Model #: 6404028
Exact Tooling IR#: 04
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MITR |
| Insert Size | 8-MT2-0.1 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | ISO |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Internal Pitch/TPI | 1.5-2 mm |
| Coating | TiAlN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | MITR 8-MT2-0.1 IC908 |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Maximum Corner Radius (mm) | 0.10 |
| Maximum Corner Radius (Decimal Inch) | 0.0039 |
| Width of Cutting Tip (mm) | 3.80 |
| Width of Cutting Tip (Decimal Inch) | 0.1500 |
| Series | MinCut |
| Rake | Positive |
| Rake Angle | 30 |
| Length (Decimal Inch) | 0.2260 |
| Overall Length (Decimal Inch) | 0.2260 |
| Manufacturers Catalog Number | 6404028 |
