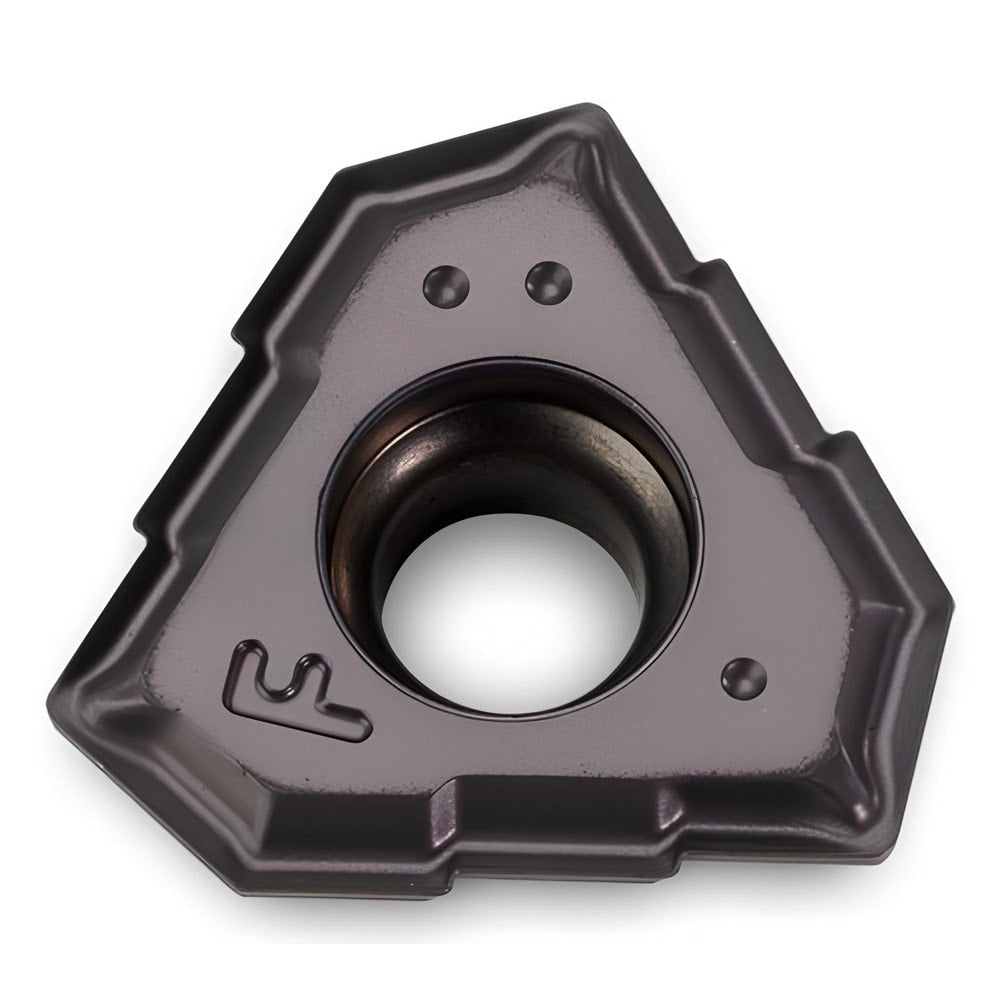

Brand: Ingersoll Cutting Tools / Part #: 5567393
Item #: 95151643
Brand: Ingersoll Cutting Tools
Model #: 5567393
Product Specifications
| Insert Style | TPHT |
| Insert Size Code | 110405 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2005 |
| Thickness (mm) | 3.8100 |
| Inscribed Circle (Decimal Inch) | 0.4090 |
| Inscribed Circle (mm) | 10.39 |
| Cutting Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0200 |
| Chipbreaker | ML |
| Series | TPHT |
| Coating Process | PVD |
| Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Manufacturers Catalog Number | TPHT110405R-ML IN2005 |
| Drill Style | MC; GDADP; MCADP; TRH; TBTA |
| Insert Size | 11 |
| Coating Classification | PVD |
| Included Angle Degree | 60 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1500 |
| Coating/Finish | TiAlN |
