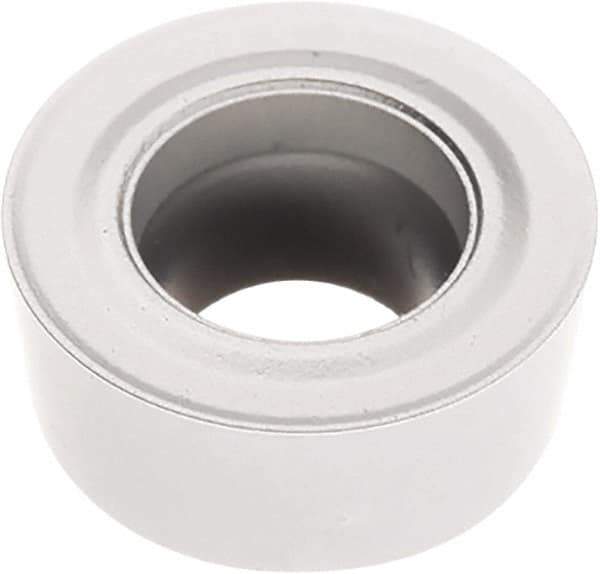

Seco - RCMT10T3M0 M3 Grade TK1501 Carbide Turning Insert - Ti(C/N)/Al2O3/Cr Finish, Round, 10mm Inscr Circle, 5/32" Thick
Item #: 37752060
Brand: Seco
Model #: 46561
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 10T3M0 |
| Material | Carbide |
| Length (mm) | 10.00 |
| Length (Decimal Inch) | 0.3937 |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 5.56 |
| Manufacturer's Grade | TK1501 |
| Coating | Ti(C/N)/Al2O3/Cr |
| Material Grade | K20 |
| Chip Breaker | M3 |
| Insert Length (Decimal Inch) | 0.3937 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | Duratomic |
| Primary Workpiece Material | K |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| FullRadius | Yes |
| MultiUseTool | Yes |
| Shape | Round |
