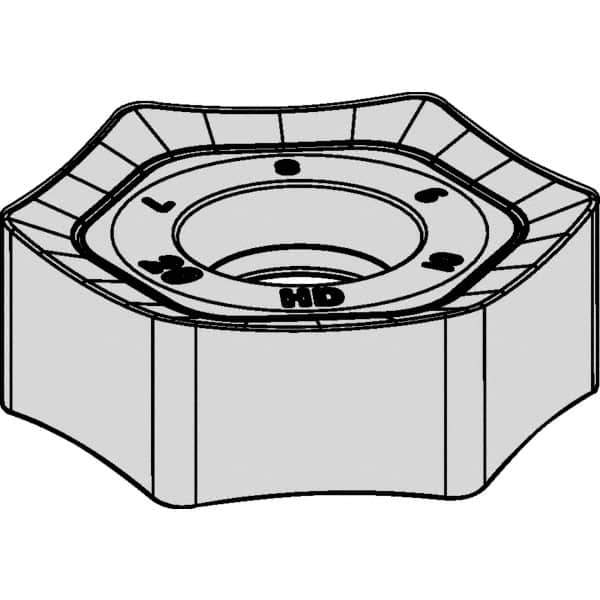

Kennametal - HNPJ75 HD Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 9/32" Thick, 7/8" Inscribed Circle, 3/64" Corner Radius
Item #: 37822871
Brand: Kennametal
Model #: 6178110
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNPJ |
| Insert Size | 75 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Length (Inch) | 1/2 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 7/8 |
| Inscribed Circle (Decimal Inch) | 0.8750 |
| Thickness (Inch) | 9/32 |
| Thickness (Decimal Inch) | 0.2813 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Coating Process | PVD |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | HD |
| ISO Number | HNPJ1307ANSNHD |
| ANSI Number | HNPJ75ANSNHD |
