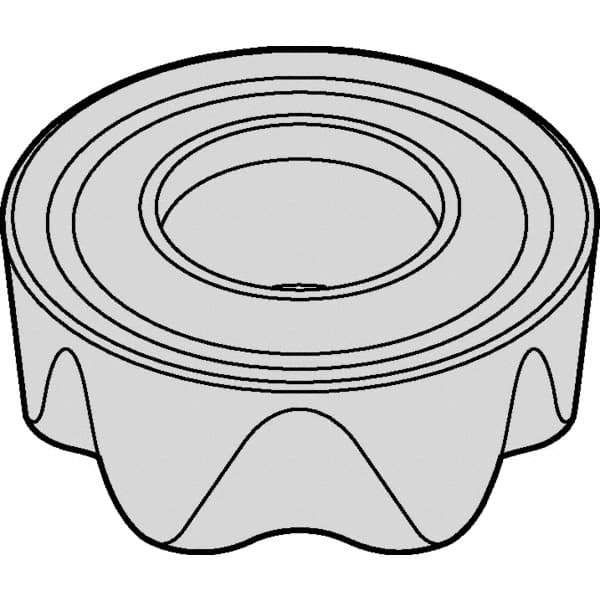

Kennametal - RCGT86 LF Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 3/8" Thick, 1" Inscribed Circle
Item #: 37823192
Brand: Kennametal
Model #: 6191360
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCGT |
| Insert Size | 86 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Relief Angle | 7.000 |
| Rake Angle | 25 |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | LF |
| ISO Number | RCGT250900ELF |
| ANSI Number | RCGT86ELF |
