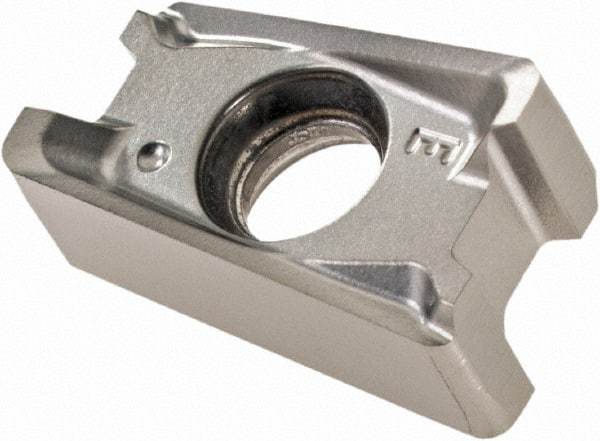

Kennametal - LNGU432 LE Grade KC422M Carbide Milling Insert - TiB2 Finish, 3/16" Thick, 0.8mm Corner Radius
Item #: 37857034
Brand: Kennametal
Model #: 6131556
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNGU |
| Insert Size | 432 |
| Material | Carbide |
| Manufacturer's Grade | KC422M |
| Coating | TiB2 |
| Width (mm) | 6.50 |
| Length (Inch) | 31/64 |
| Length (Decimal Inch) | 0.4844 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 3.40 |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | LE |
| Manufacturers Catalog Number | LNGU432ERLEJ |
