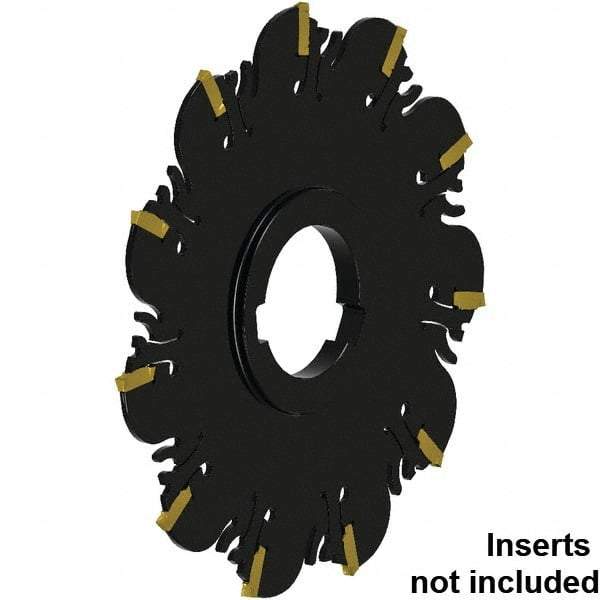

Kennametal - Arbor Connection, 0.106" Cutting Width, 38.2mm Depth of Cut, 125mm Cutter Diam, 32mm Hole Diam, 8 Tooth Indexable Slotting Cutter - 32mm Shank Diam, FDA Toolholder, XCP27... Insert, Neutral Cutting Direction
Item #: 37896487
Brand: Kennametal
Model #: 5614832
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 2.70 |
| Cutting Width (Decimal Inch) | 0.1060 |
| Maximum Depth of Cut (mm) | 38.20 |
| Cutter Diameter (mm) | 125.00 |
| Hole Diameter (mm) | 32.00 |
| Shank Diameter (mm) | 32.00 |
| Number of Teeth | 8 |
| Toolholder Style | FDA |
| Series | KNS |
| Insert Style | XCP27... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Neutral |
| Insert Holding Method | Clamp |
| Maximum RPM | 640 |
| Maximum Cutting Width (mm) | 4.00 |
| Hub Diameter (mm) | 47.00 |
